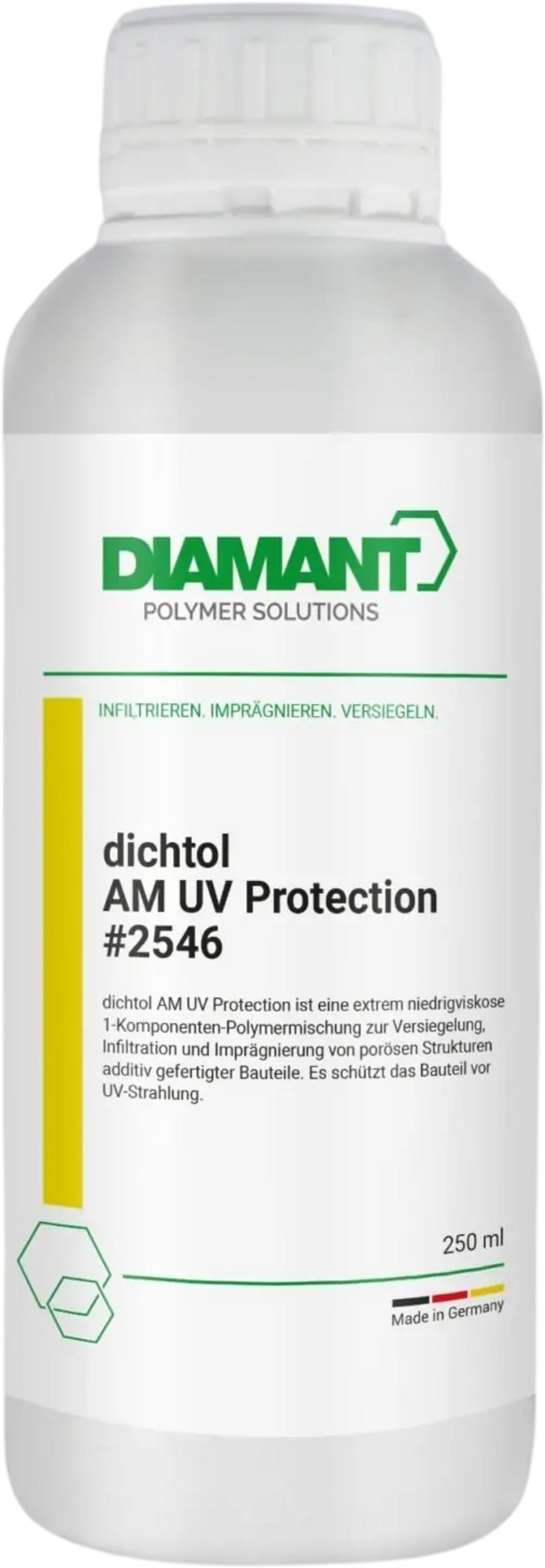

DIAMANT Polymer dichtol AM UV Protection, 250 ml

Thin viscosity impregnation agent for 3D printed parts

Content: 250 ml

Delivery to United States is not possible.

Features & Advantages

  • Polymer-based & thin viscosity
  • Sealing against gas & liquid
  • Protection against UV radiation
  • Temperature resistant up to +200 °C

Item no.: DIA-2546-K40, Content: 250 ml, EAN: n/a

Product information & technical details


You can impregnate additively manufactured components with the thin, polymer-based dichtol AM UV Protection from DIAMANT Polymer. The impregnating agent uses a thin, micrometre-sized protective layer to seal the components in a gas- and liquid-tight manner and protects them from the effects of harmful UV radiation.

The agent is temperature-resistant up to +200 °C and offers temporary corrosion protection.

Possible applications:

  • Capillary-active deep impregnation of micropores, hairline cracks and porosities,
  • Selective series impregnation,
  • Individual impregnation of large components,
  • Impregnation of rapid prototyping and additive manufacturing components,
  • Sealing of porous graphite and ceramic components,
  • Protection of surfaces against UV radiation.

Preparation and application

Before use, the pores that need to be sealed must be thoroughly cleaned of dirt and other disruptive substances.

Attention! Both surfaces that are too warm or too cold can have a negative impact on the effect or penetration behaviour of the product.

There are a few possible uses for dichtol AM UV Protection :


Apply four times in 1-minute intervals in a cross pattern and keep moist for at least 5 minutes to allow the product to penetrate deep into the pores;

Inject and fill:

Pour sealol into the desired space to be sealed and allow it to take effect for approx. 5 minutes; then pour off the excess material;

► Immersing:

Immerse the object to be sealed in sealing oil and remove it after approx. 5 minutes; drain the object thoroughly.

Tip: 3D printed components require different exposure and immersion times depending on the material and microstructure. In some cases, positive results are seen with repeated use of the waterproofing agent.

Hazard and precautionary statements

Precautionary statements:

  • P210 - Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking.
  • P233 - Keep container tightly closed.
  • P241 - Use explosion-proof electrical/ventilating/lighting equipment.
  • P261 - Avoid breathing dust/fume/gas/mist/vapours/spray.
  • P264 - Wash hands thoroughly after handling.
  • P271 - Use only outdoors or in a well-ventilated area.
  • P273 - Avoid release to the environment.
  • P280 - Wear protective gloves/protective clothing/eye protection/face protection.
  • P302+P352 - IF ON SKIN: Wash with plenty of water/soap
  • P304+P340 - IF INHALED: Remove person to fresh air and keep comfortable for breathing.
  • P305+P351+P338 - IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.
  • P308+P313 - IF exposed or concerned: Get medical advice/ attention.
  • P310 - Contact your doctor/poison control centre immediately.
  • P312 - Call a POISON CENTRE/doctor if you feel unwell.
  • P333+P313 - If skin irritation or rash occurs: Get medical advice/attention.
  • P370+P378 - In case of fire: Use dry extinguishing power or sand to extinguish.
  • P501 - Dispose of contents/container at an industrial incineration plant.

Hazard statements:

  • H226 - Flammable liquid and vapour
  • H315 - Causes skin irritation
  • H318 - Causes serious eye damage.
  • H317 - May cause an allergic skin reaction
  • H336 - May cause drowsiness or dizziness
  • H412 - Harmful to aquatic life with long lasting effects
