LDO Motors V0.2 R1 Upgrade Parts

With this R1 upgrade, some BOM additions were introduced or improvements were made to the Voron V0.2 to fix common causes of problems.

What changes are there?

► When the bottom plate was installed, 34mm Z motors would not fit in the machine. For this, the feet have been increased in size by 2 mm.

► Added a simple filament runout sensor.

► Cooling channels of the MiniSB panelling parts have been optimised.

► The tophat cam locks were too easy to remove so switched to a simple allen key design.

► The Z-endstop bracket has been reinforced to prevent sagging.

► The Guider can no longer turn in an undesired direction.

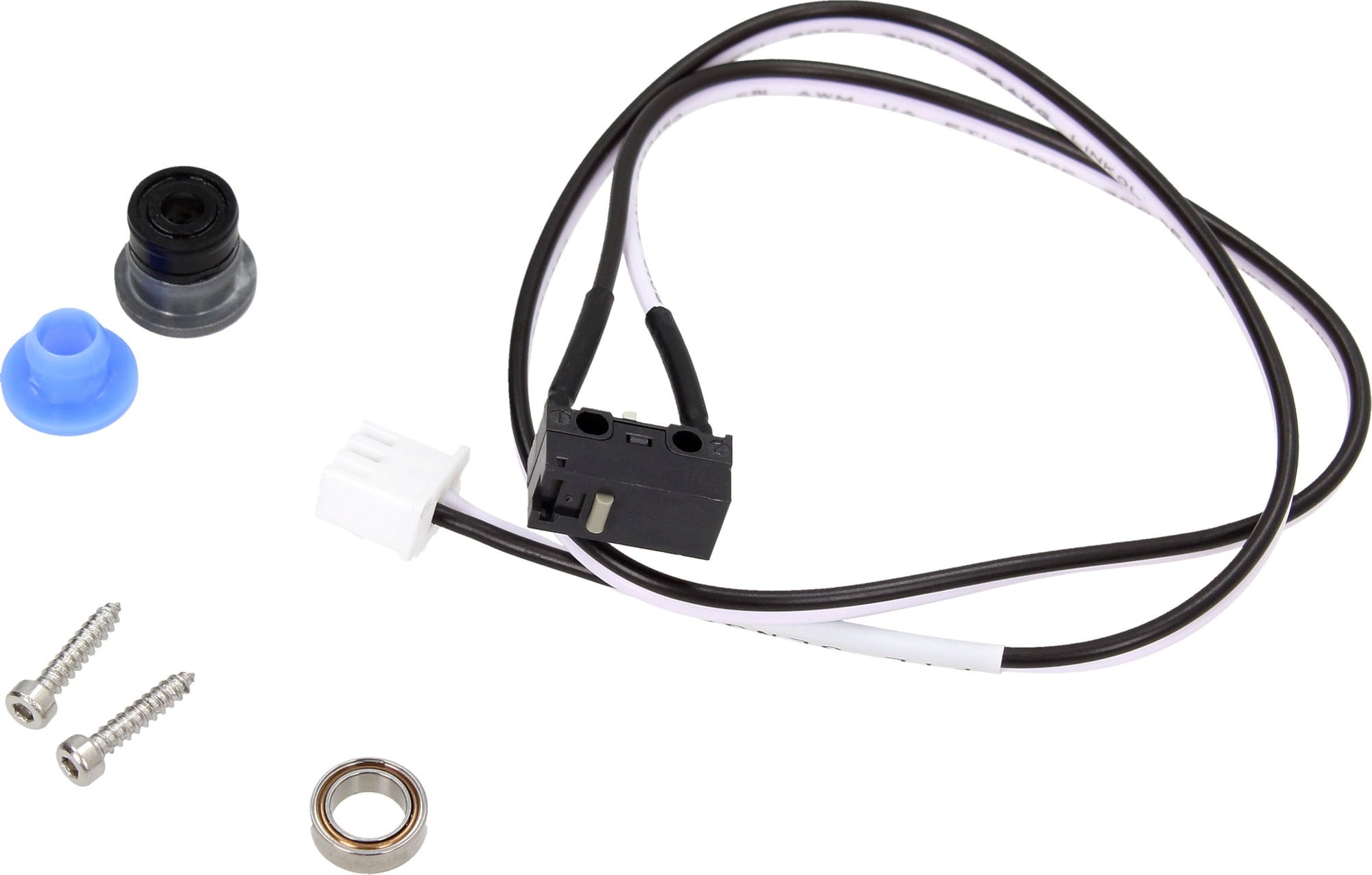

The contents of the delivery include the following BOM supplements:

• 2 x M2x10 self-tapping screw
• 1 x MR85 Bearing
• 1 x Micro Switch
• 1 x ECAS04 bowden collet

All parts included are required for the filament sensor. The remaining changes and updates refer to printed parts. As always, you can find the latest Voron updates here on GitHub.
