Sovol SV08 Max

CoreXY kinematics for smooth running, precise movements & best print quality

Content: 1 pc

Delivery to United States is not possible.

Features & Advantages

  • Build volume: 500 x 500 x 500 mm
  • Up to 700 mm/s speed
  • 300°C hot end
  • Smart filament feeder system

Item no.: SOV-500101101684, Content: 1 pc

Related products

  • placeholder
  • placeholder
  • placeholder
  • placeholder

Product information & technical details

  • Item no.: SOV-500101101684
  • Manufacturer No.: 500101101684
  • Manufacturer: Sovol
  • Content: 1 pc
  • Product type: 3D Printers
  • Assembly: Assembly kit
  • Printing Technology: FFF - FDM - LPD
  • Printer Display: Touch Display
  • Extruder type: Direct Drive Extruder
  • Number of extruders: Single
  • Interfaces: USB - Connection, WIFI - WLAN, LAN
  • Heated build platform: Yes
  • Heated chamber: No
  • Filament Diameter: 1,75 mm
  • Build volume: 500 x 500 x 500 mm
Description

When your ideas are bigger than what standard printers can handle, the Sovol SV08 Max steps in. Built for large-scale projects and top-tier performance, it offers a robust, thoughtfully designed system that keeps your workflow smooth – even on the most complex prints.

A lightning-fast giant

With a massive build volume of 500 × 500 × 500 mm, the SV08 Max brings your boldest ideas to life – from furniture prototypes and cosplay showpieces to functional industrial parts. And it does so without sacrificing speed!

Boasting a print speed of 700 mm/s, 40,000 mm/s² acceleration, and a powerful high-flow nozzle delivering up to 50 mm³/s, this printer is built to beat the wait.

CoreXY for ultimate control

Thanks to its CoreXY kinematics, the printhead glides effortlessly across the build area with reduced vibration and increased precision – ideal for intricate models with fine detail.

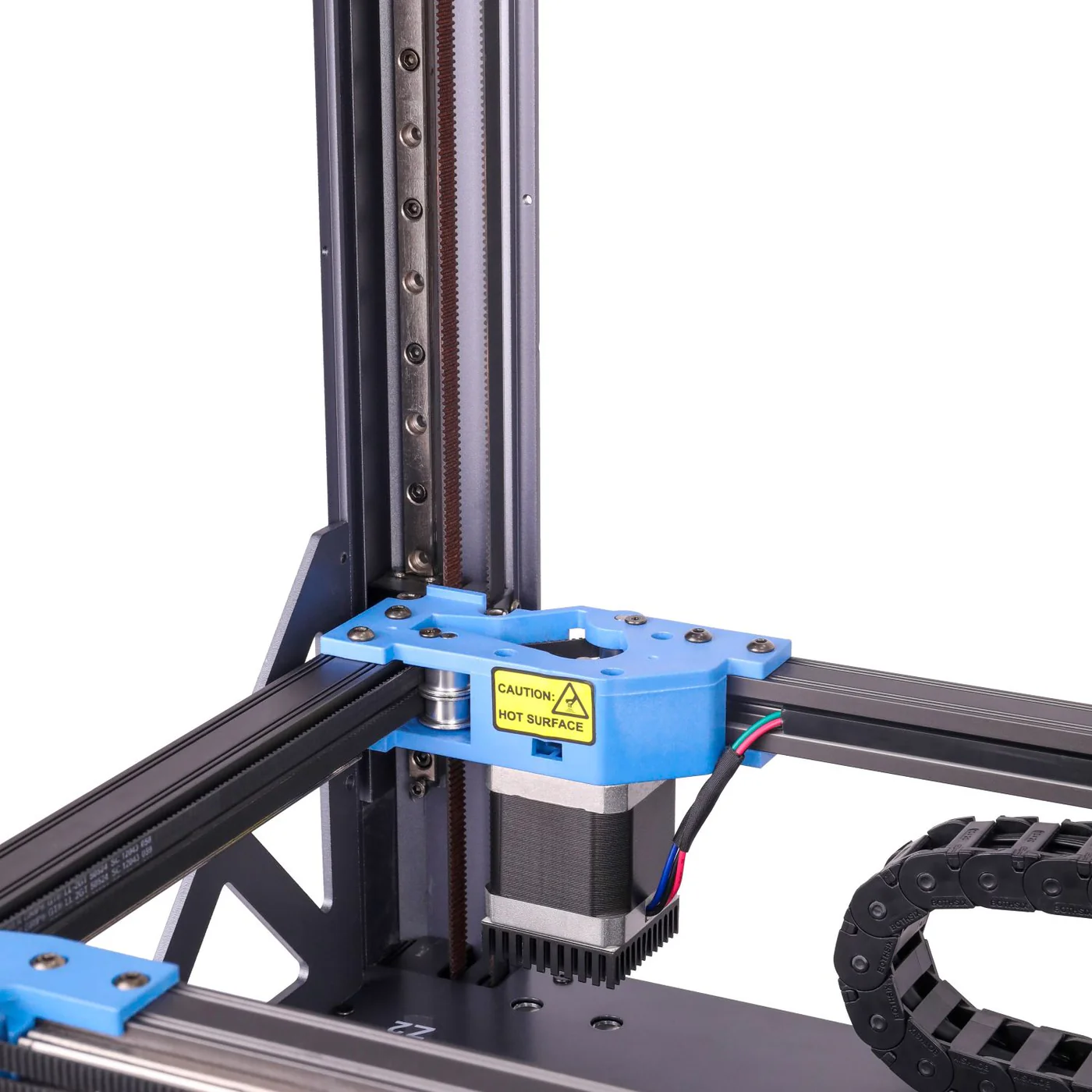

Durable linear rails for unbeatable stability

Heavy-duty linear rails ensure long-lasting accuracy, minimise print artefacts, and deliver reliable performance over time.

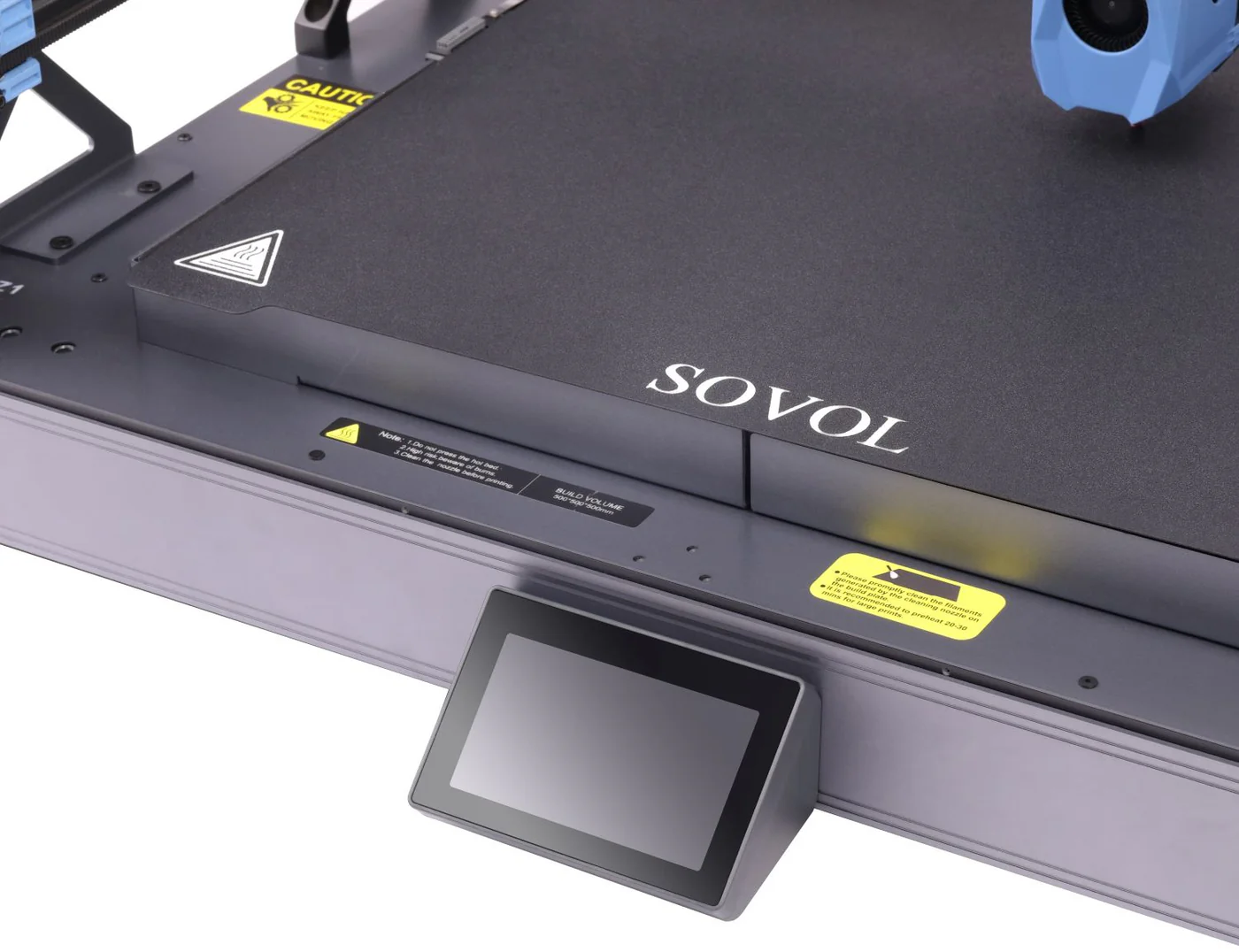

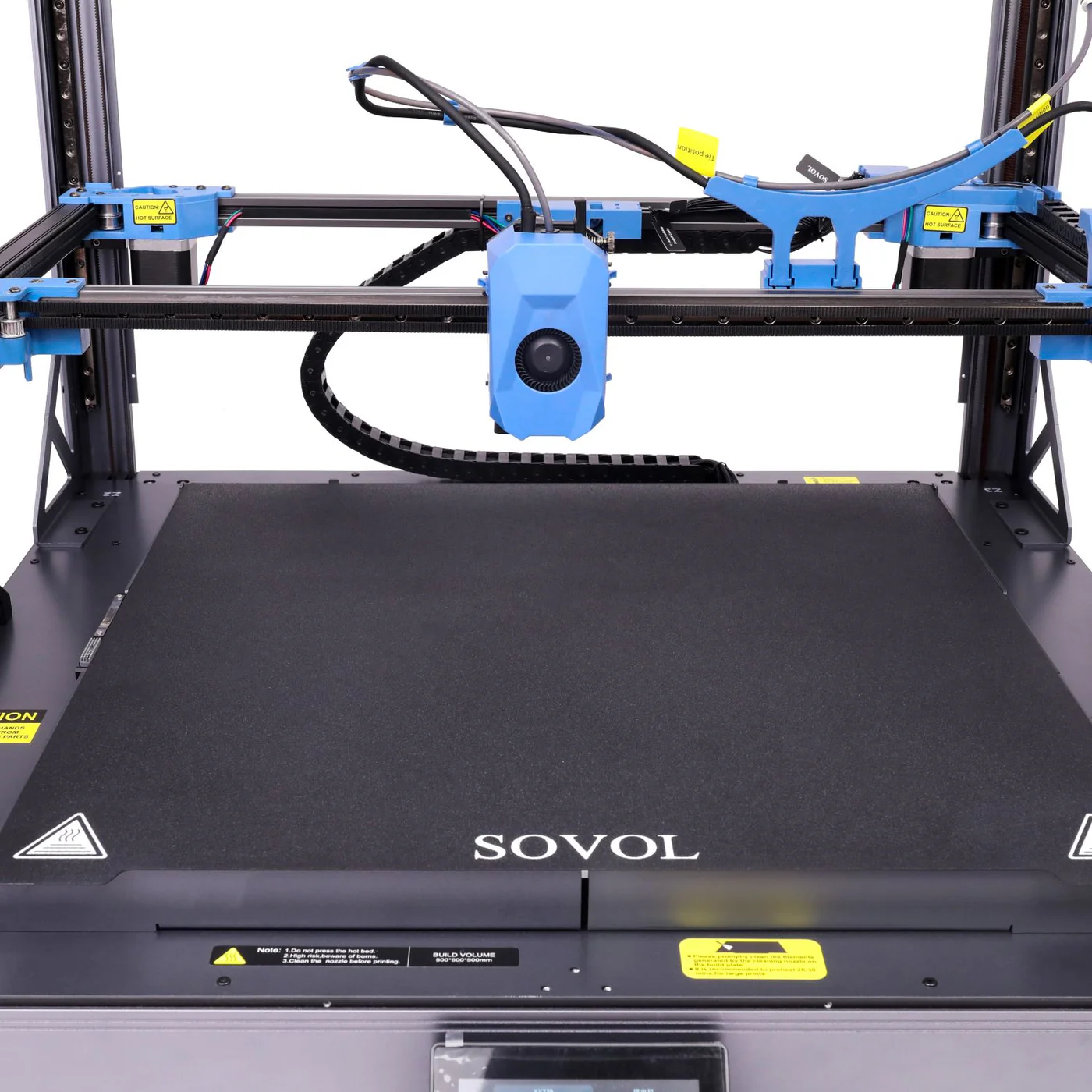

Powerful heated bed

The 8 mm thick aluminium print plate, powered by a 1300 W heater, ensures fast, even heat distribution – perfect for large-format prints.

Auto-levelling perfection

Featuring advanced eddy current sensors, the SV08 Max scans the bed surface with non-contact precision, ensuring a flawless first layer. Combined with pressure-based calibration, the process is practically effortless.

Ready for high-temperature adventures

The SV08 Max’s hotend reaches up to 300 °C and supports a variety of nozzle sizes – ideal for specialist filaments and high-performance prints.

Tip: Planning to upgrade with a heated chamber later? No problem – the connection is already in place. The heating module is available separately.

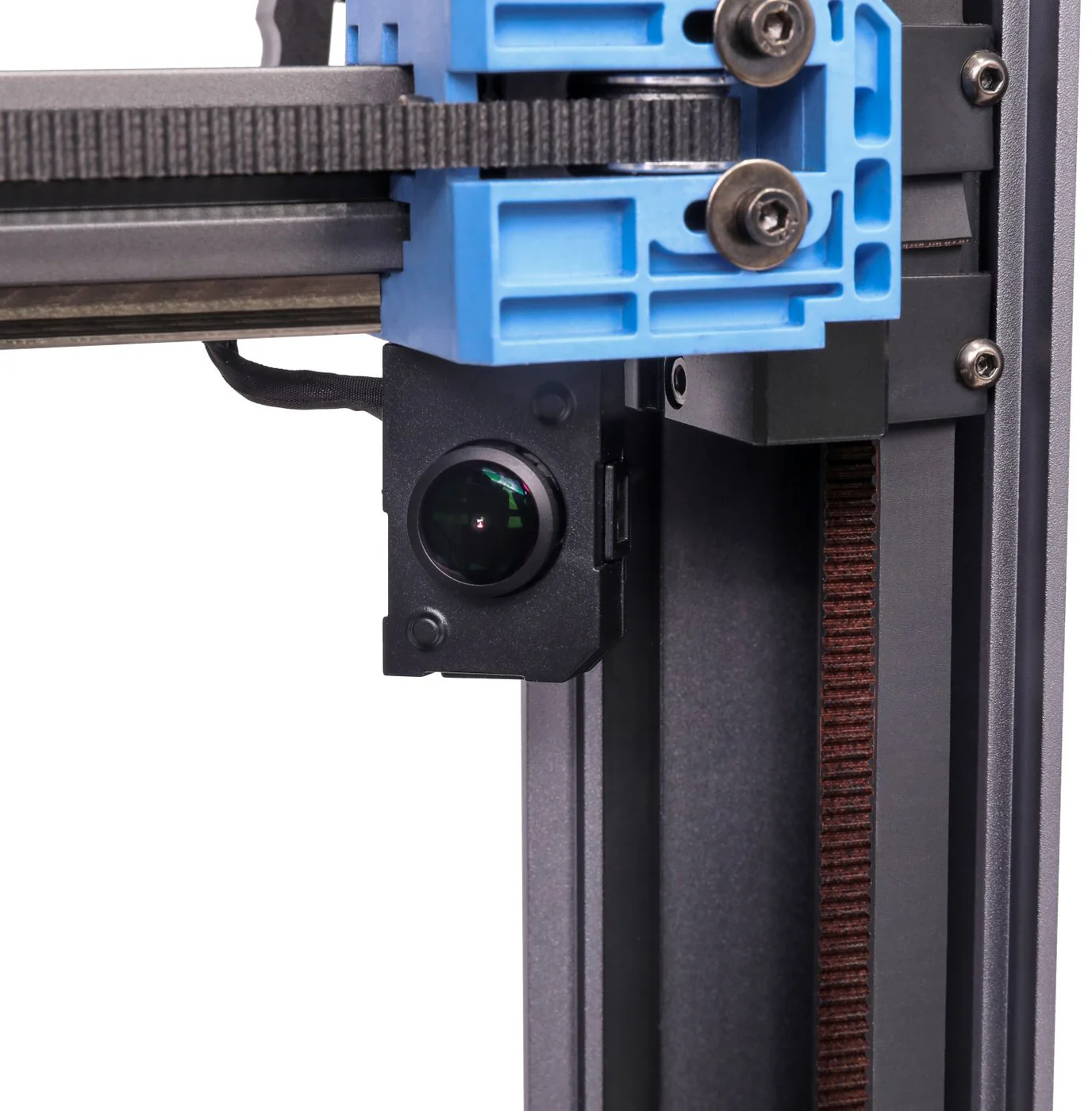

Everything in clear view, even from a distance

Integrated HD camera (1280 x 720 pixels) including time-lapse recording, remote monitoring and compatibility with Obico: you can monitor, control and analyse your prints from anywhere.

Filament professional on board

The intelligent filament feeder recognises lumps and blockages before they become a problem. This keeps the printing process reliable, even with long projects or delicate materials.

Filament flexibility at its best

PLA, TPU, PETG, ABS, ASA, PA, PC, CF-reinforced variants - the choice is yours.


Technical specifications:

Printer size 700 x 710 x 750 mm (without spool holder)
Construction volume 500 x 500 x 500 mm
Max. printing speed 700 mm/s
Max. acceleration 40 000 mm/s²
Max. flow rate 50 mm³/s
Pressure temperature ≤ 300℃
Heating bed temperature ≤ 100℃
Heating ceramic heater
Nozzle 2 x 0.4 mm (standard)
0.4/0.6/0.8 mm (optional)
Filament diameter 1.75 mm
Motors Z-axis: TMC2209×4
A-axis: TMC5160×1
B-axis: TMC5160×1
Communication CAN bus

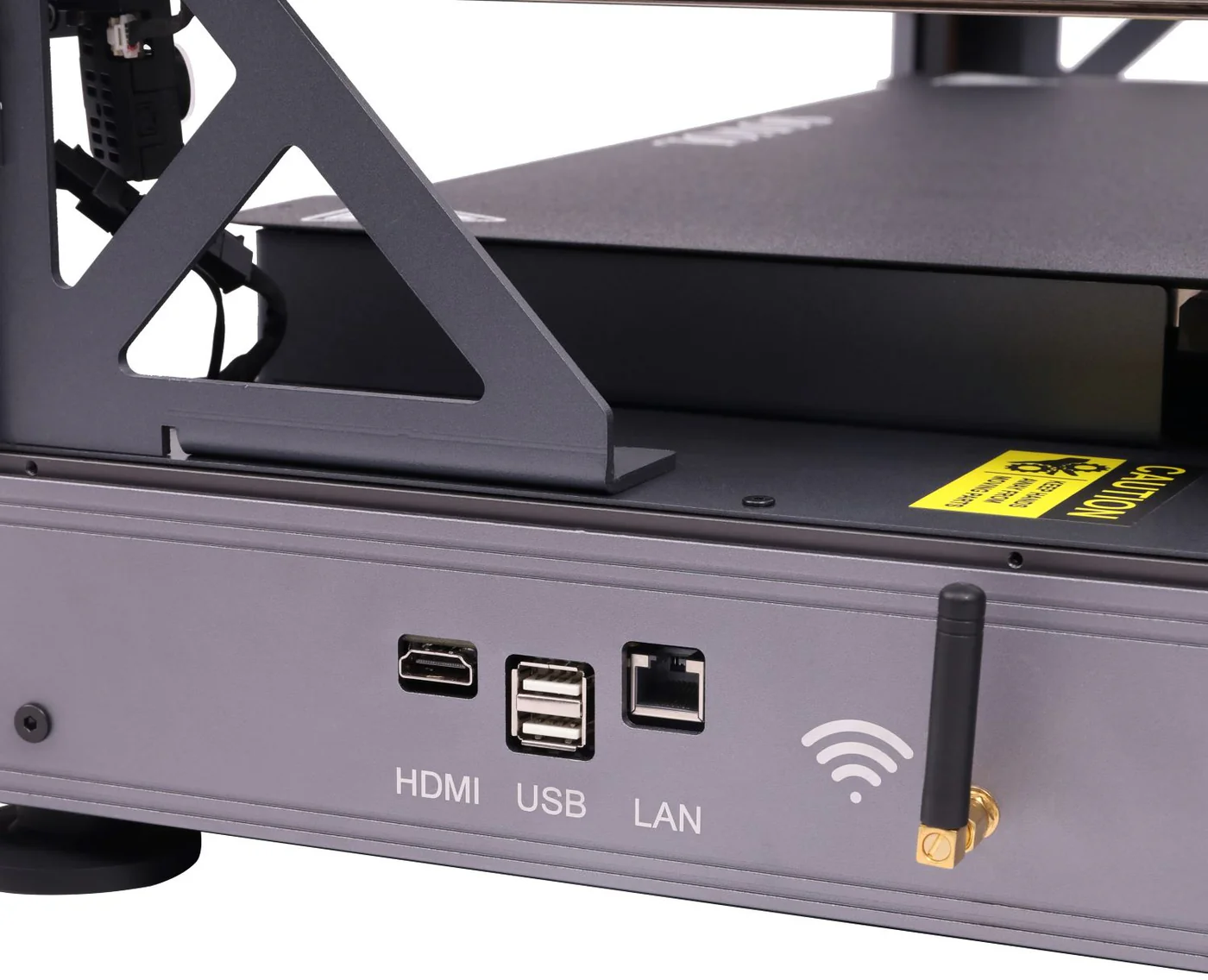

Interfaces USB, Wi-Fi (2.4 G/5 G), HDMI, Ethernet
Control system Clipper
Slicer OrcaSlicer
RAM 1 GB (512 MB + 512 MB)
Memory 8 GB EMMC
Functions Filament Runout Detection
Power Loss Resume Printing
Filament Tangle / Clog Detection
Auxiliary Feeding
