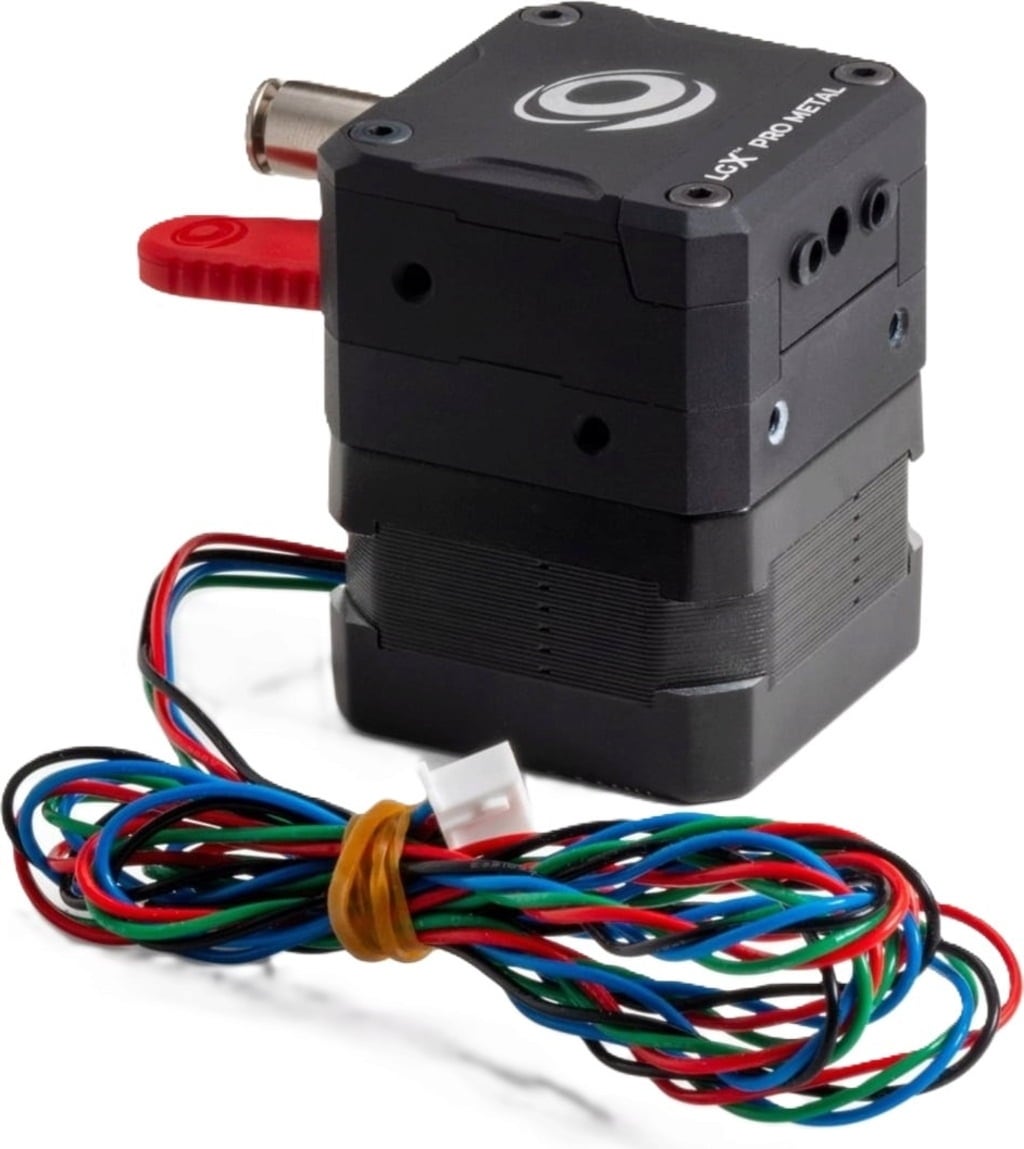

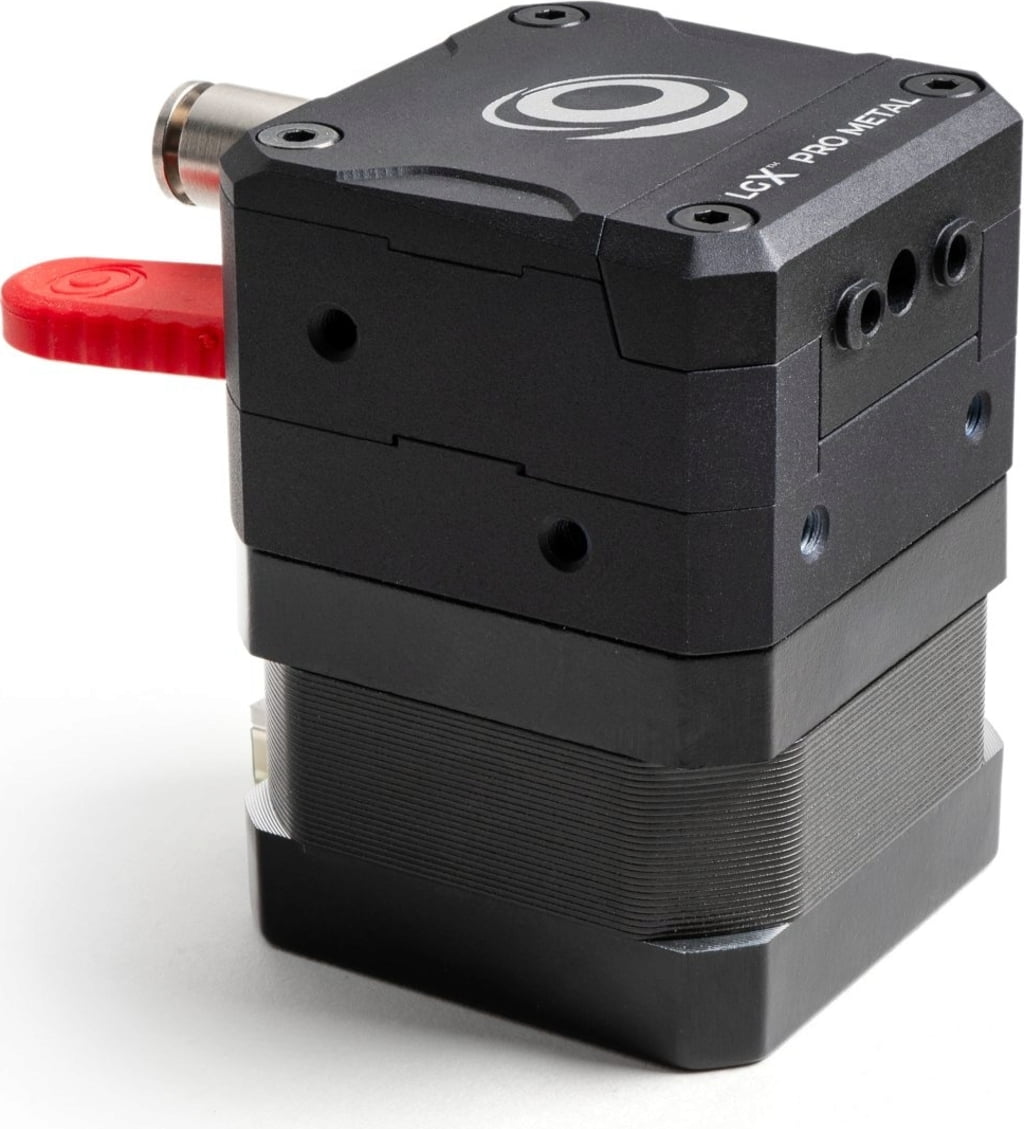

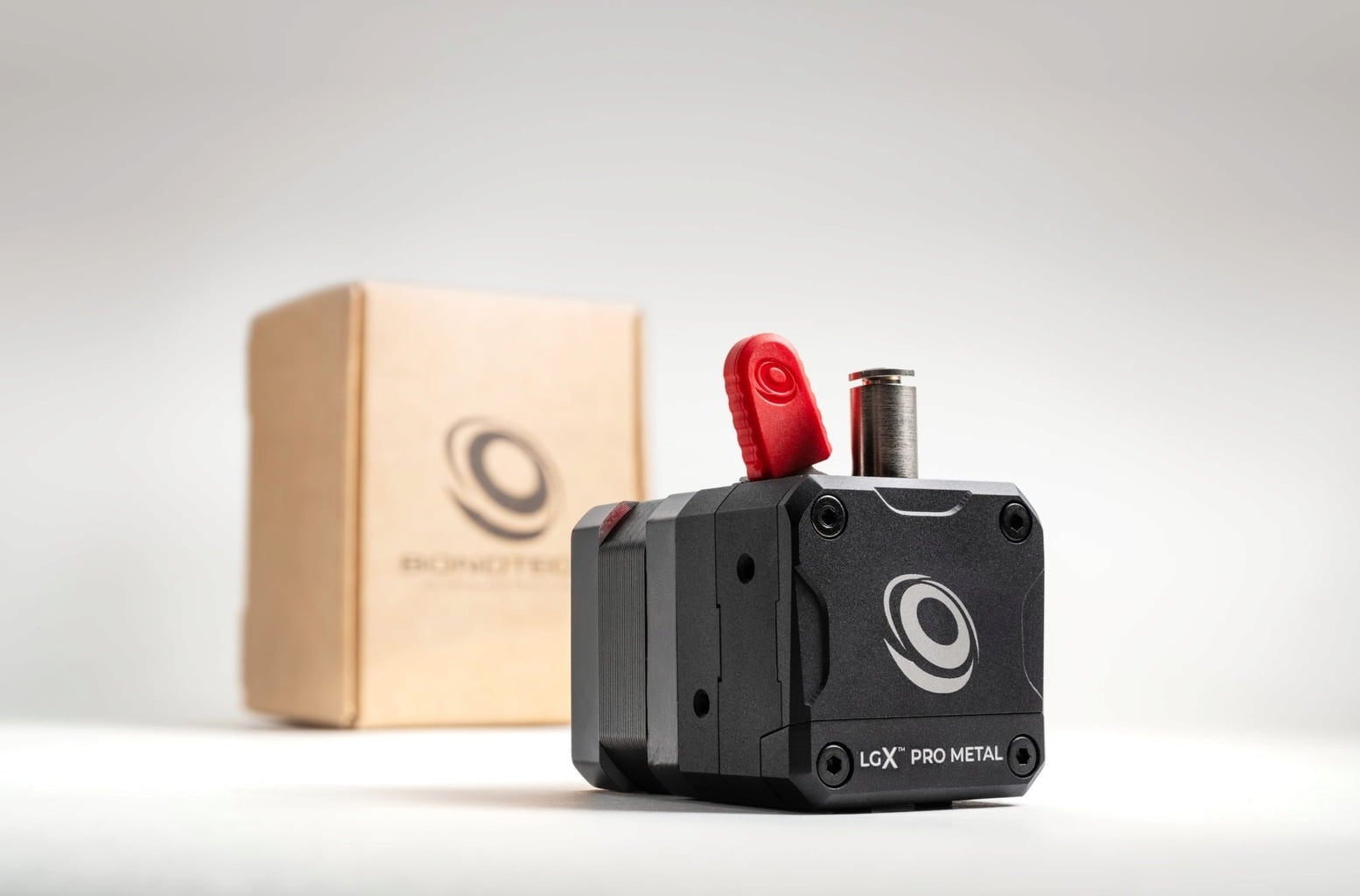

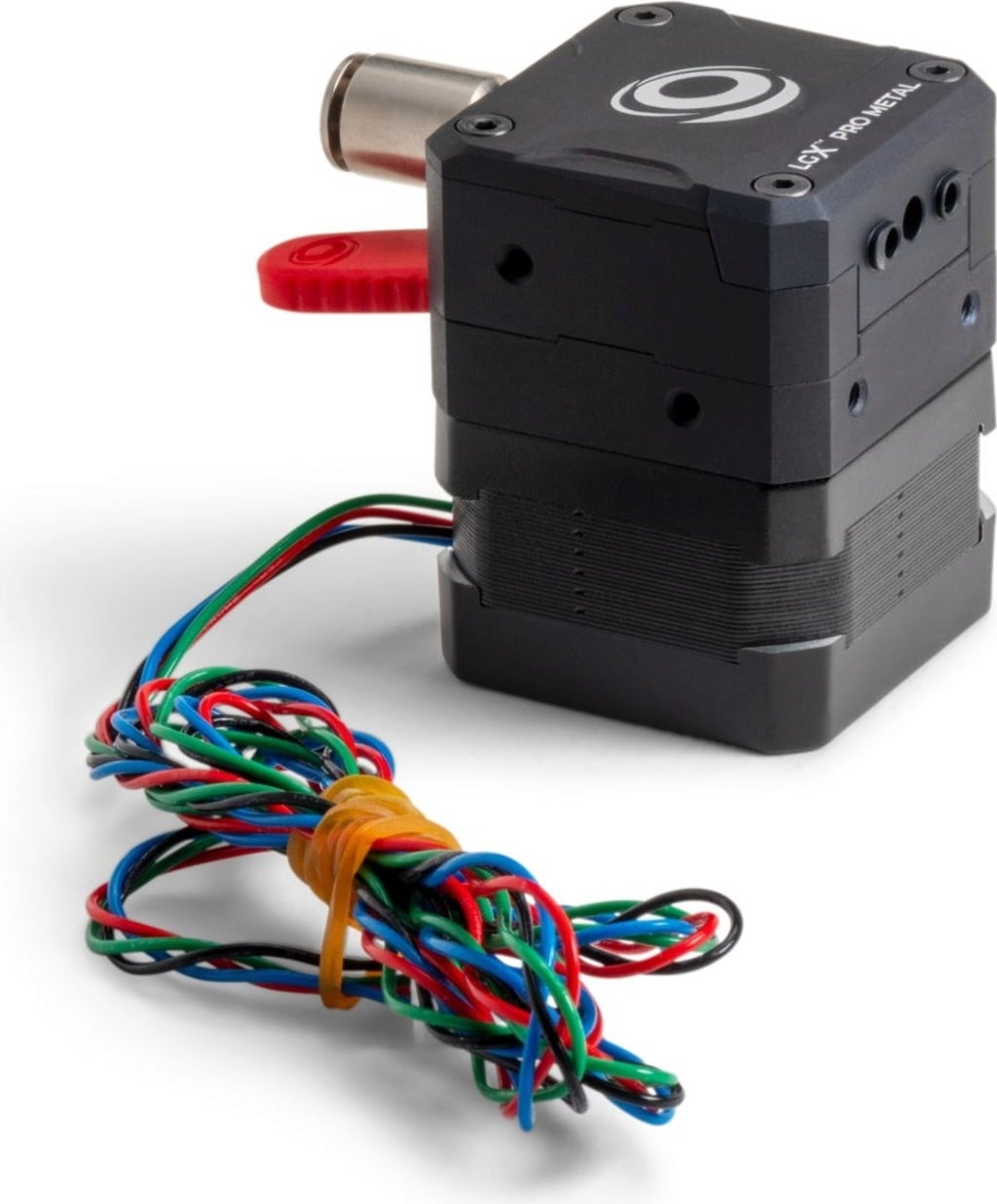

BondTech LGX Pro Metal HT Extruder, 1,75 mm

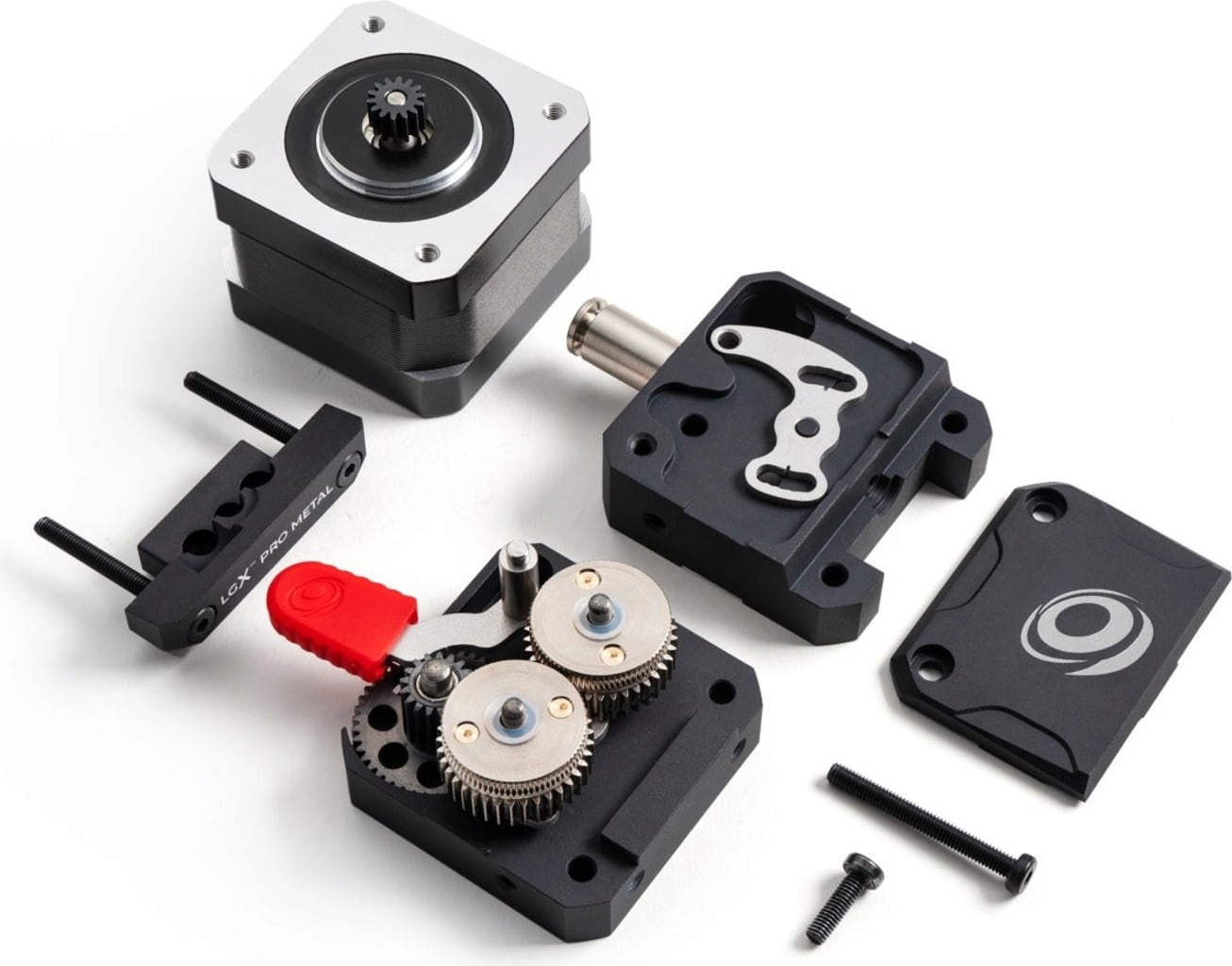

The LGX PRO Metal HT eXtruder from Bondtech is an all-metal extruder designed for industrial applications and high temperatures. The PRO Metal HT version of the LGX Large Gears eXtruder convinces with versatile improvements and attractive features:

• Aluminium housing in symmetrical design is more compact and offers higher performance and compatibility,
• Larger drive wheels ensure better filament grip,
• An optimised filament pretension lever with 4 additional positions for repeatable results,
• A multi-function interface socket helps to quickly change tools and applications,
• The 30 mm high-temperature stepper motor is stronger and offers more thrust,
• The hardened steel drive train is tougher,
• The additional aluminium interface connector also makes it suitable for longer hotends,
• The design is simpler and has several mounting hole patterns for more flexibility,
• Better protection against dust and particle-laden industrial environments.

►Note: This extruder does not allow a mounting plate between the motor and the extruder. No more than (max.) 1A current should be used to operate the extruder!

Included in delivery:

• 1 x LGX® PRO Metal 1.75 mm or 2.85 mm feeder
• 1 x Custom Nema17 30 mm HT pancake stepper motor
• 1x metal plug-in connection M7 4 mm
• 1x 2 mm Allen key (recommended tool)
• 1x information brochure on the product line
• 1x Powered By Bondtech sticker

+ Additional accessories:

• 4 x M3x23 mm bolts with 5 mm hexagon with M3x4 thread
• 30 mm PTFE hose for use in the Direct Drive Interface Plug
