CNC Kitchen Threaded Insert Set M UNC (350 pcs)
Precision-milled threaded inserts made of brass
$55.41
($0.16 / pc, All prices excl. VAT.
Features & Advantages
- Material: brass
- For thermoplastics
- Free from cadmium & lead
- Contents: 350 pieces
Item no.: CNC-TC-SET-I-M, EAN: 4262391011874
Product information & technical details
- Item no.: CNC-TC-SET-I-M
- Manufacturer No.: TC-SET-I-M
- Manufacturer: CNC Kitchen
- Product type: Hardware
Description
These CNC-milled Threaded Inserts made of high-quality brass are practical accessories that turn your 3D-printed parts (made of PLA, PETG, ABS, etc.) into practical and versatile functional components.
The cadmium- and lead-free threaded inserts are installed or melted into place using a soldering iron. They increase the strength of the resulting connection by bonding the threaded insert with the material and preventing it from moving.
Tip: For maximum strength, install the brass inserts at a temperature 10–20°C higher than the printing temperature. CNC Kitchen also recommends only soldering the threaded inserts 90% of the way in - the rest can be fitted into the component using tools.
Advantages at a glance:
- Suitable for all thermoplastic materials,
- Also suitable for SLA resin (NOTE: the inserts should be attached here with glue!),
- Free from cadmium and lead
- REACH and RoHS compliant,
- Durable and robust,
- Creates strong bonds.
- Contents: 350 pieces

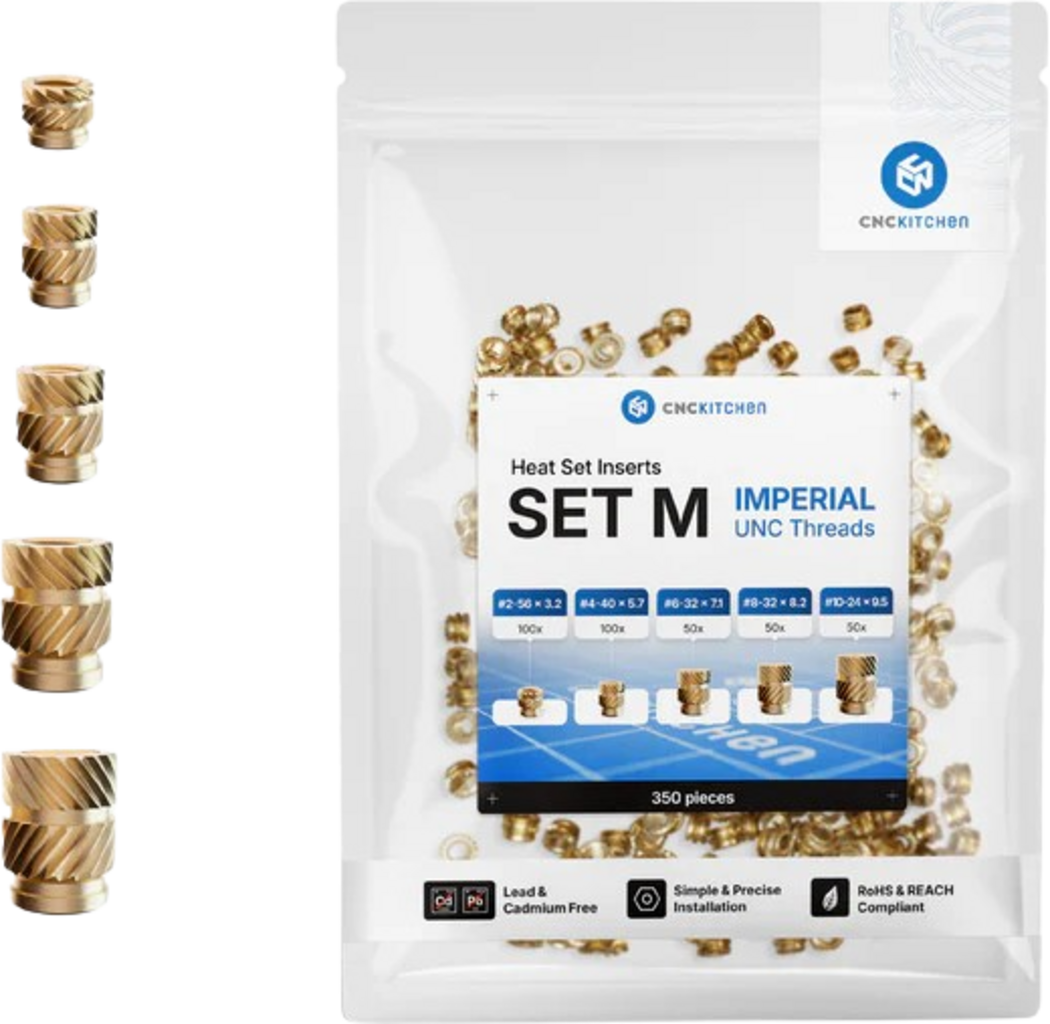

► The M UNC Threaded Insert Set contains 350 threaded inserts. The threaded inserts can also be purchased separately.
- 100 x 2-56 UNC, length 3.2 mm
- 100 x 4-40 UNC, length 5.7 mm
- 50 x 6-32 UNC, length 7.1 mm
- 50 x 8-32 UNC, length 8.2 mm
- 50 x 10-24 UNC, length 9.5 mm

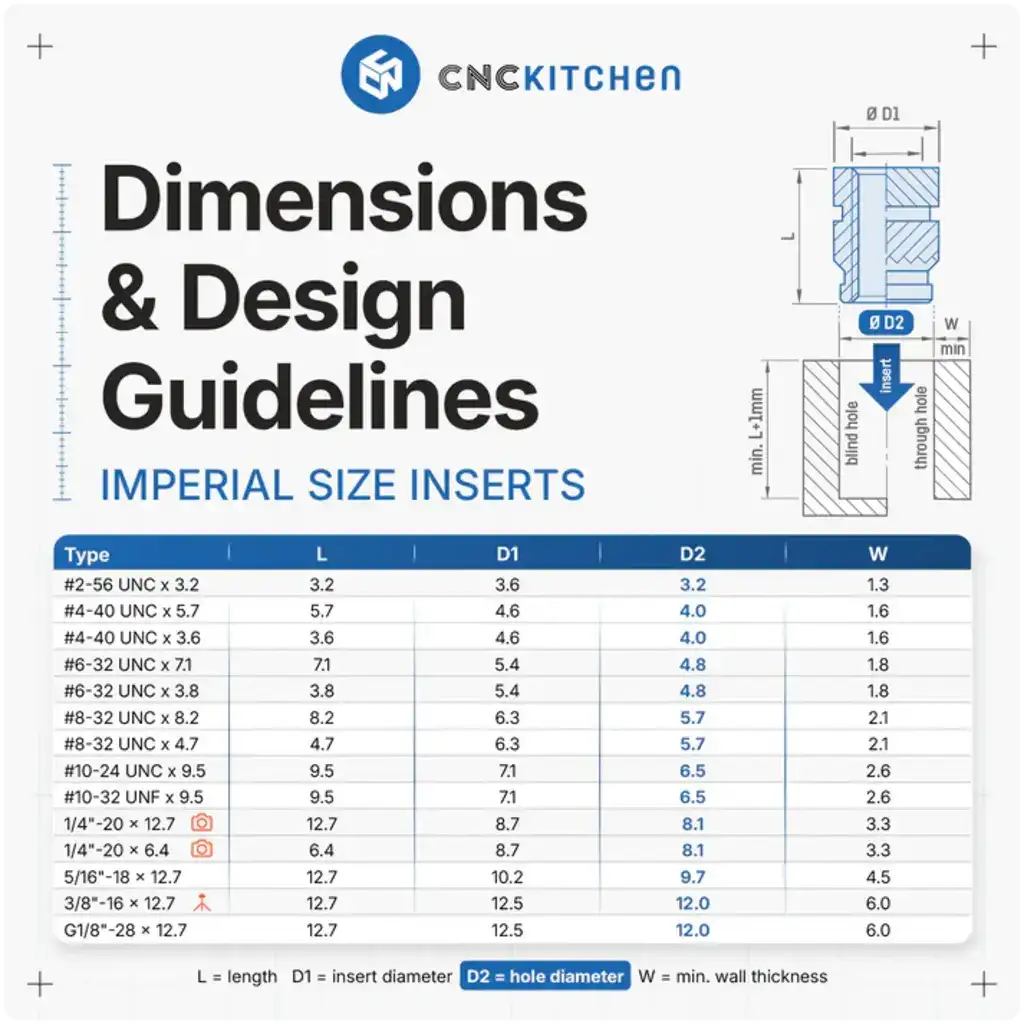

CNC Kitchen UNC thread inserts compared:
| Thread size UNC | Length type L |
Insert diameter ⌀ D1 |
Centering tip ⌀ D2 |
Minimum wall thickness W |
| #2-56 UNC x 3.2 | 3.2 | 3.6 | 3.2 | 1.3 |
| #4-40 UNC x 5.7 | 5.7 | 4.6 | 4.0 | 1.6 |
| #4-40 UNC x 3.6 | 3.6 | 4.6 | 4.0 | 1.6 |
| #6-32 UNC x 7.1 | 7.1 | 5.4 | 4.8 | 1.8 |
| #6-32 UNC x 3.8 | 3.8 | 5.4 | 4.8 | 1.8 |
| #8-32 UNC x 8.2 | 8.2 | 6.3 | 5.7 | 2.1 |
| #8-32 UNC x 4.7 | 4.7 | 6.3 | 5.7 | 2.1 |
| #10-24 UNC x 9.5 | 9.5 | 7.1 | 6.5 | 2.6 |
| #10-32 UNF x 9.5 | 9.5 | 7.1 | 6.5 | 2.6 |
| 1/4''-20 x 12.7 | 12.7 | 8.7 | 8.1 | 3.3 |
| 1/4''-20 x 6.4 | 6.4 | 8.7 | 8.1 | 3.3 |
| 5/16''-18 x 12.7 | 12.7 | 10.2 | 9.7 | 4.5 |
| 3/8''-16 x 12.7 | 12.7 | 12.5 | 12.0 | 6.0 |
| G1/8''-28 x 12.7 | 12.7 | 12.5 | 12.0 | 6.0 |
