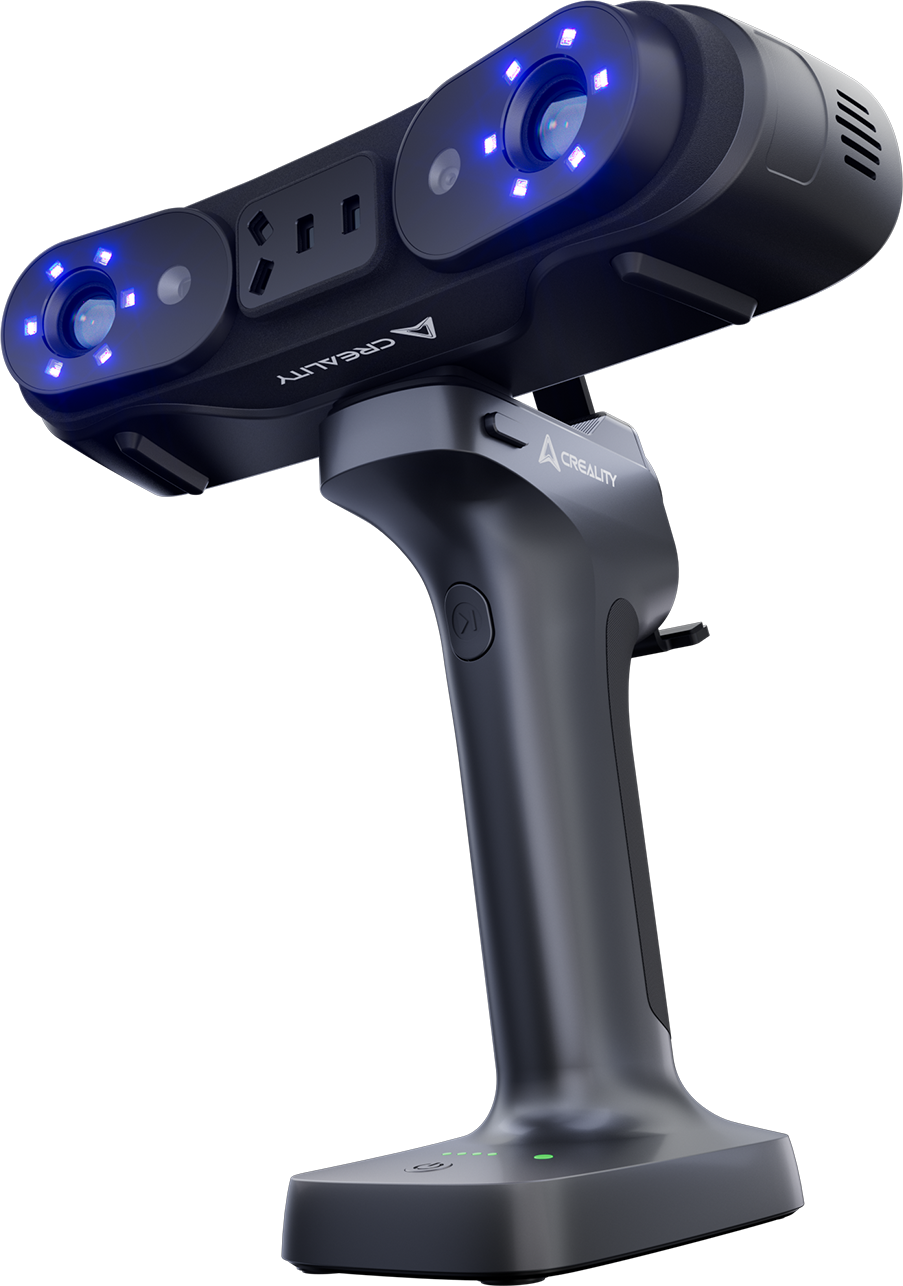

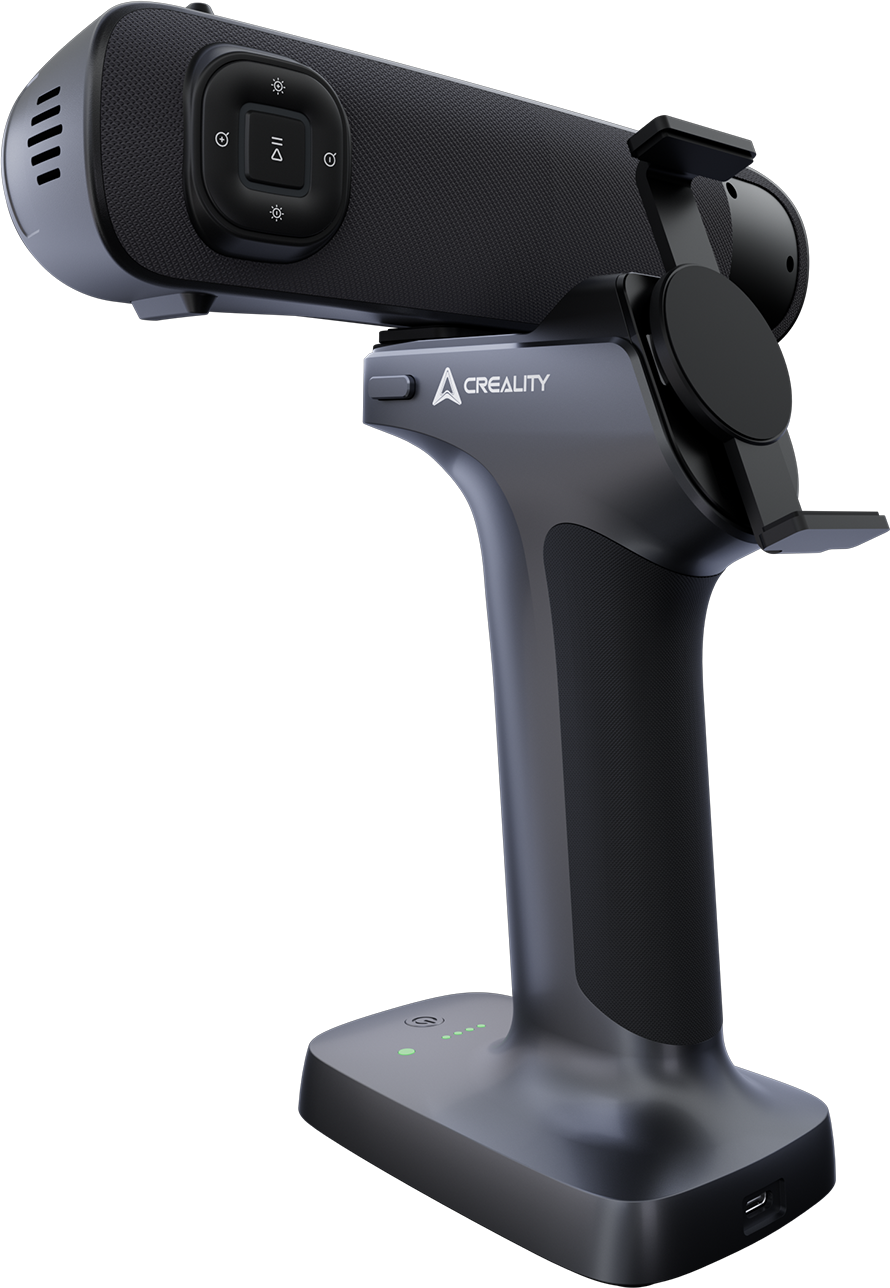

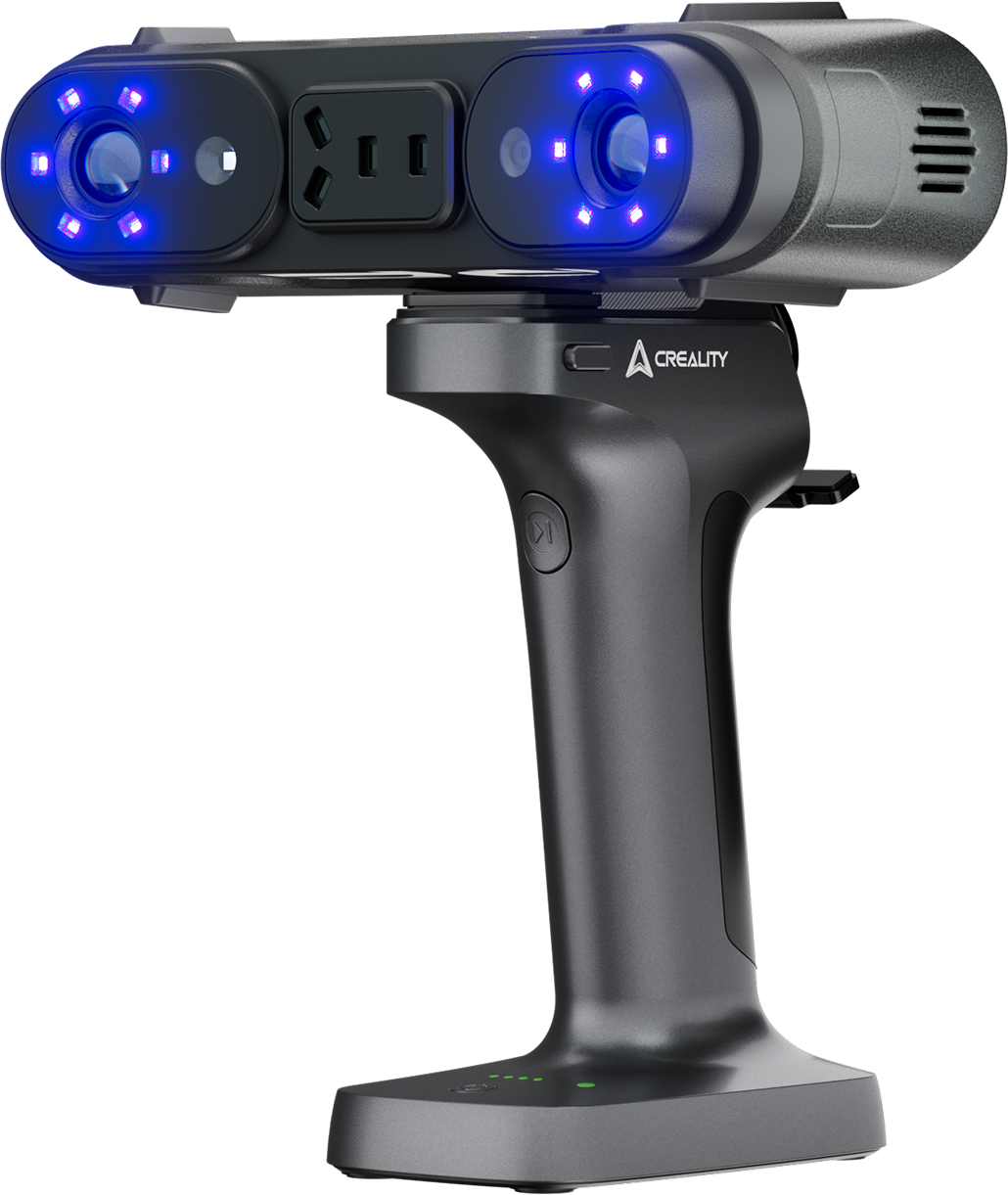

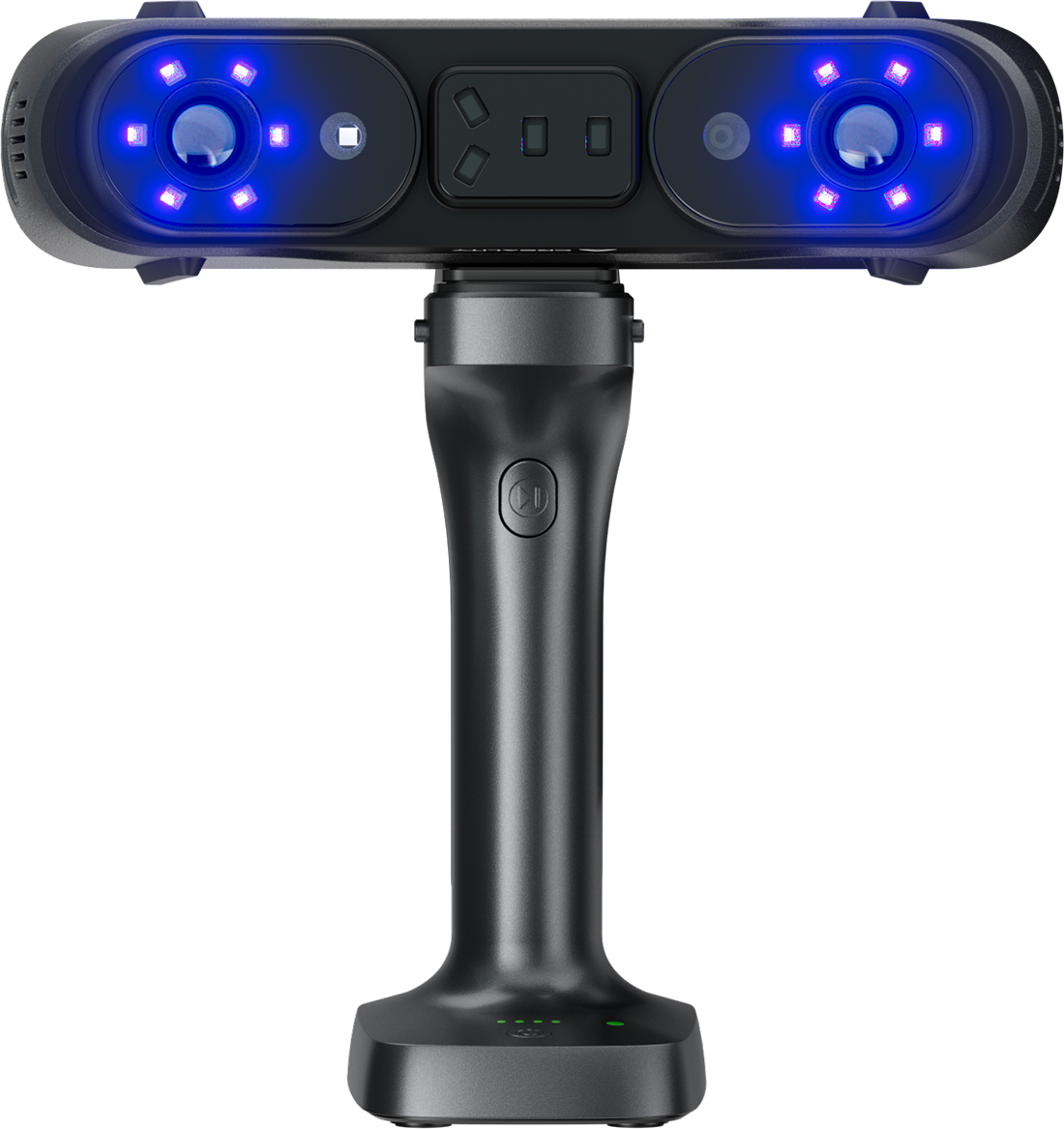

Creality Sermoon X1

The Creality Sermoon X1 redefines industrial 3D scanning: delivering outstanding precision, flexible scanning modes and a robust, high-quality construction that make it the ideal solution for applications in design, manufacturing and quality control.

Industrial-grade precision ⇒ 0.02 mm + 0.04 mm/m

With a measurement accuracy of 0.02 mm and volumetric precision of 0.04 mm/m, the Sermoon X1 meets even the most demanding professional applications. Its integrated photogrammetry system ensures exact results without the need for markers – and eliminates cumulative errors, even when scanning large objects.

Stability thanks to CNC monoblock design

The housing features a CNC-machined one-piece structure, providing exceptional rigidity, thermal stability and vibration-free operation – perfect for precision work, even with large scan volumes.

Versatile scan modes for every detail

The hybrid system combining Single-Line + 7 + 34 blue laser lines and NIR structured light delivers ultra-precise scans in any lighting conditions.

► Single laser line: For capturing deep or hard-to-reach areas with precision.

► 34 cross laser lines: For comprehensive 3D scanning. This configuration covers larger areas efficiently and significantly boosts the scanning speed.

► 7 parallel blue laser lines: For highly detailed scans of complex structures. Even delicate surface textures are captured with exceptional accuracy – ideal for applications requiring high levels of detail.

► NIR structured light: The near-infrared mode uses structured IR light for fast, markerless scanning – perfect for sensitive or hard-to-mark surfaces.

By combining blue laser lines with infrared structured light, the Sermoon X1 offers flexible object capture across a wide size range – from tiny objects (5 mm³) to large-scale items (up to 4000 mm³).

Integrated photogrammetry with scale bars

Equipped with built-in photogrammetry and two scale bars, the Sermoon X1 automatically corrects dimensional deviations during reconstruction. This ensures exceptional volumetric accuracy of 0.02 mm + 0.03 mm/m.

Intelligent stabilisation for consistent scanning

An AI-assisted temperature compensation algorithm and an efficient thermal management system keep performance stable during long scanning sessions. Temperature fluctuations are automatically balanced, guaranteeing precise, consistent results without drift or loss of quality – even under heavy continuous use.

Wireless and mobile

With Wi-Fi 6 connectivity and a battery life of up to 4 hours, the Sermoon X1 offers full mobility. Data transfer speeds of up to 4.7 Gbps ensure rapid, uninterrupted operation.

True-to-life colours and textures

A 2-megapixel RGB camera powered by a Qualcomm ISP chip and integrated lighting captures realistic colours and fine texture details – perfect for design, 3D visualisation and digital twin creation.

Technical specifications:
