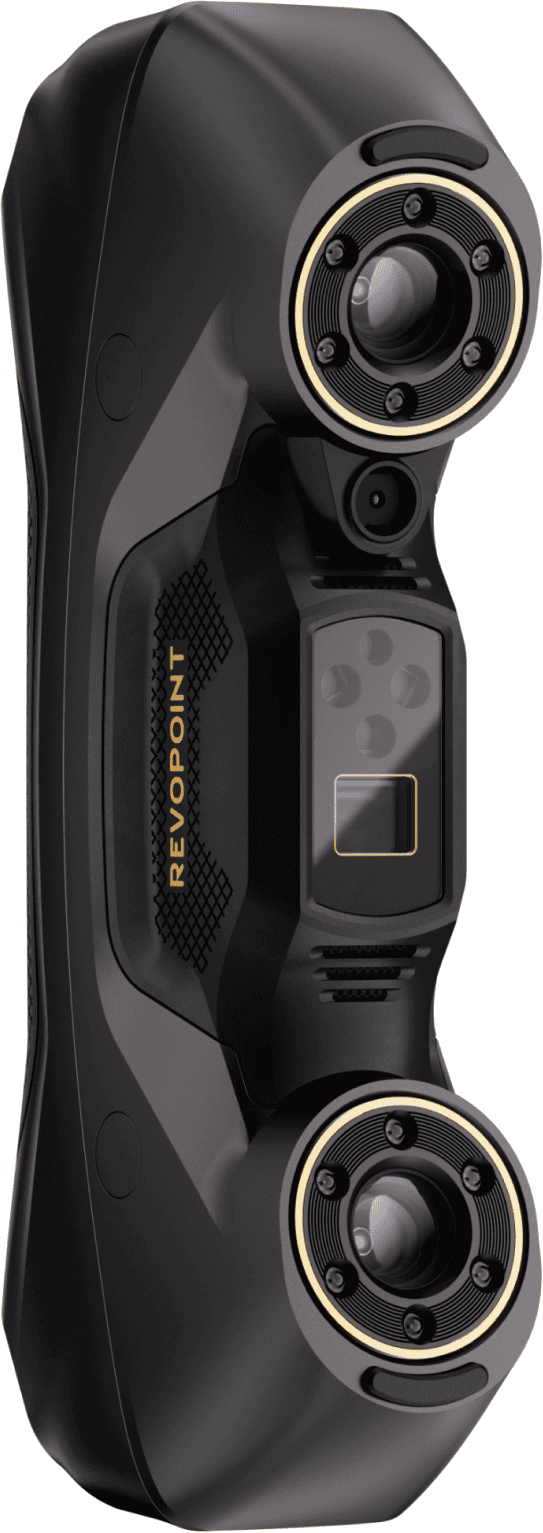

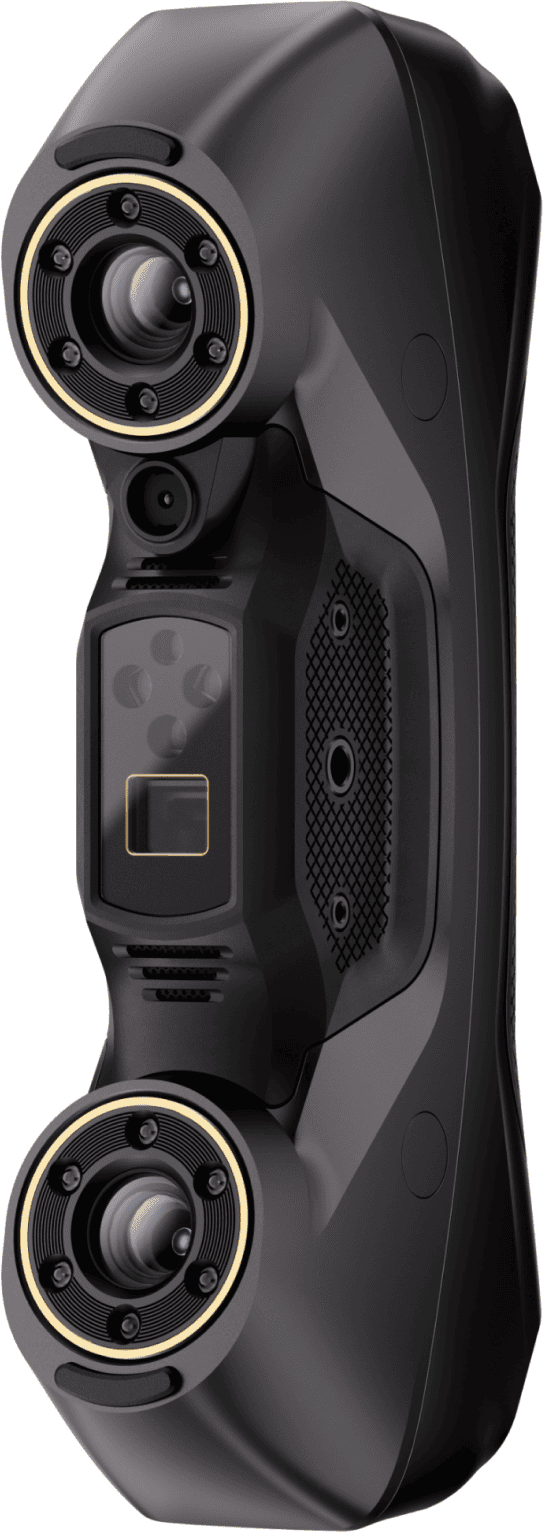

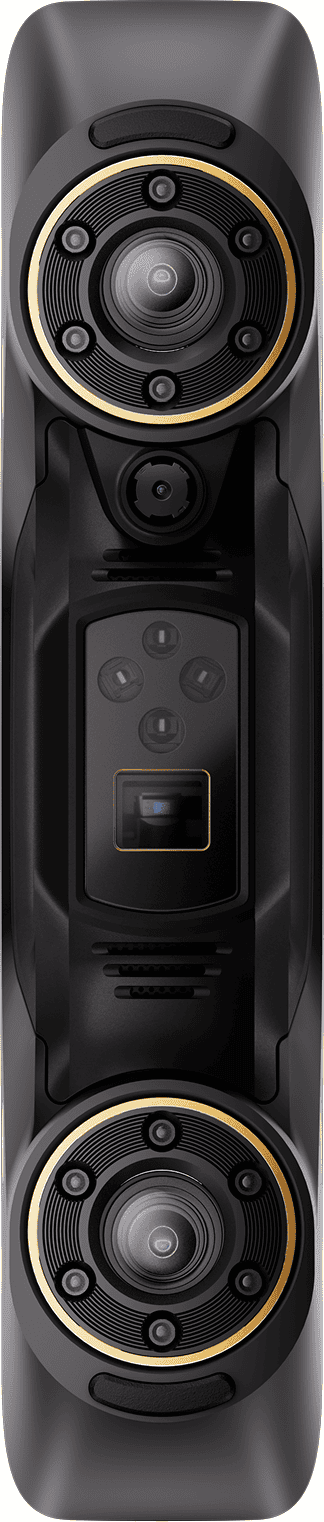

Revopoint MetroY Pro

High-precision 3D scanner with five scan modes for maximum flexibility

Variant:
  • Revopoint MetroY

    Revopoint

    MetroY

    High-precision blue laser 3D scanner for complex geometries

    $1,218.43
  • Revopoint MetroY Pro

    Revopoint

    MetroY Pro

    High-precision 3D scanner with five scan modes for maximum flexibility

    $1,627.82

Content: 1 pc

Delivery to United States is not possible.

Features & Advantages

  • Five scanning modes
  • Wireless scanning
  • True colour results
  • High precision

Item no.: RP-6975577881489, EAN: 6975577881489

Similar products

  • placeholder
  • placeholder
  • placeholder
  • placeholder

Product information & technical details

  • Item no.: RP-6975577881489
  • Manufacturer No.: 6975577881489
  • Manufacturer: Revopoint
  • Product type: 3D Scanners
  • Supported operating systems: Windows (7+), Mac OS X (10.7+)
  • Interfaces: USB-C Connection
  • Supported Formats (Slicer): STL, OBJ, PLY, ASC, 3MF
  • Scanning technology: Linear laser
Description

The Revopoint MetroY Pro is the next generation of professional 3D scanners!.With no less than five powerful scanning modes, it combines the precision of blue laser technology with the flexibility of structured light. It captures even the most complex geometries, shiny or dark surfaces and the finest details with impressive speed and accuracy - wirelessly, efficiently and ready to use at any time!

Main differences between MetroY & MetroY Pro:

Model MetroY MetroY Pro
Scan technology Multi-line laser Multi-Line-Laser + Full-Field Structured Light
Scan modes 3 modes: 30 cross lines, 15 parallel lines, single line 5 modes: 34 cross lines, 15 parallel lines, single line, structured light, auto turntable
Tracking Marker & global marker tracking Marker, global marker and feature tracking
Scan speed up to 1.5 million points/s up to 1.7 million points/s (laser) & up to 7 million points/s (structured light)

Five scan modes:

With five scanning modes, the MetroY Pro effortlessly masters even the most complex geometries and difficult to capture surfaces. Whether glossy, deep, dark or detailed - the handheld scanner delivers precise results without compromise.

► 34 cross lines: Capture flat, shiny or black surfaces without spraying - at up to 1.7 million points per second.

► 15 parallel lines: Ideal for fine details, edges and complex shapes that require absolute accuracy.

► Single line: Perfect for deep holes, gaps and grid structures.

► Structure light: Marker-free scanning in seconds with 62 blue lines - up to 7 million points per second.

► Auto Turntable: Fully automatic scanning with the dual-axis turntable - for ultra-precise models at the touch of a button.

Impressive precision

With a volumetric accuracy of 0.02 mm + 0.04 mm × L (m) and a dot pitch of up to 0.05 mm, the MetroY Pro delivers exact data - ideal for reverse engineering, scan-to-CAD workflows or quality control.

Wireless & efficient

Thanks to Wi-Fi 6, you are completely free when scanning. The MetroY Pro transmits your scans in real time and displays them live in the Revo Mirror on your PC or monitor. This allows you to recognise blind spots and gaps immediately and can rescan seamlessly.

Impressive colours

The integrated HD RGB camera captures realistic surface colours for detailed 3D models. Auto Turntable mode makes texture alignment even more precise, giving you more consistent, professional results.

Stable accuracy through temperature control

Highly sensitive sensors constantly monitor the operating temperature and prevent loss of accuracy. This means the MetroY Pro delivers consistent results - even during long scanning sessions.

Included in the delivery:

  • 1 x MetroY Pro 3D scanner
  • 1 x USB Type-C to Type-C cable
  • 1 x power adapter
  • Marker
  • 1 x calibration board
  • 1 x Carrying case
  • 1 x Tripod
  • 1 x Dual-axis turntable
  • 1 x Mobile Kit (third generation)
  • 1 x Bust

MetroY vs. MetroY Pro:

Model MetroY MetroY Pro
Dimensions 211 x 94 x 47 mm
Weight 447 g 450 g
Scan type handheld
Scanning technology Multi-line laser scan Multi-line laser scan + full-field structured light scan
Size of the scan object small to medium
Single image precision up to 0.01 mm
Single image accuracy up to 0.02 mm
Volumetric accuracy 0.02 mm + 0.04 mm x L (m)
Fused point distance up to 0.05 mm
Working distance 200 ~ 400 mm
Single detection range at minimum distance 123 x 130 mm at 400 mm 152 x 138 mm at 200 mm
Single detection range at longest distance 290 x 260 mm at 400 mm 332 x 276 mm at 400 mm
Angular field of view 43 x 33° 49 x 38°
Min. scan volume 10 x 10 x 10 mm
Max. scan volume 1000 x 1000 x 1000 mm
Scan speed Multi-line laser scan: up to 1 500 000 points/s Multi-line laser scan: up to 1,700,000 points/s
Full-field structured light scan: 7,000,000 points/s
Resolution of the RGB camera 2 megapixels
Colour scan yes
Tracking methods Marker, Global Marker Marker, Global Marker, Feature
3D light source 30 blue cross lines
15 blue parallel laser lines
1 blue single laser line		 34 blue cross lines
15 blue parallel laser lines
1 blue single laser line
62 blue lines of full-field structured light
Supplementary light 12 blue LEDs
CPU 4 core ARM 2.0 GHz
Min. PC requirements macOS
CPU: M1 Pro/Max/Ultra RAM ≥ 16 GB

Windows
CPU: Intel i7 12th Gen or AMD Ryzen 7 5800
RAM: ≥ 32 GB
GPU (optional): NVIDIA GeForce RTX 3050 (8 GB)		 macOS
CPU: M1 Pro/Max/Ultra RAM
≥ 16 GB

Windows
CPU: Intel i7 12th Gen or AMD Ryzen 7 5800
RAM: ≥ 32 GB
GPU (optional): NVIDIA GeForce RTX 3050 (8 GB)
Recommended PC specifications macOS
CPU: M2 Pro/Max/Ultra,M3 Pro/Max/Ultra
RAM: ≥ 24 GB

Windows
CPU: Intel i9 12th Gen or better
RAM: ≥ 64 GB
GPU: NVIDIA RTX 4060 (8 GB) or better		 macOS
CPU: M2 Pro/Max/Ultra,M3 Pro/Max/Ultra
RAM: ≥ 24 GB

Windows
CPU: Intel i9 12th Gen or better RAM: ≥ 64 GB
GPU: NVIDIA RTX 4060 (8 G B) or better
Compatible operating systems Windows 10/11 (64-bit), macOS 11.0 or better
Slicer formats PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
WiFi 6
Interfaces USB Type-C to Type-C
Mains power DC 12 V, 3 A
